The switch must be mounted in a four-post rack. Perform the following tasks to mount the switch.
Attach the left and right shelf to the rack, adjusting the length of the shelves as needed. You must allocate 4RU rack space starting from the top of the shelf for switch placement (Shelf Installation).
Note: Components are designed for tool-less installation in square-hole racks.
Shelf Installation
The four-post mount accessory kit contains these components:
Left Shelf and Right Shelf
Rack mounting ears
Follow the steps listed below to attach the shelves to the rack.
Note: Illustrations use a representative 4 RU chassis.
Extend the sliding end of each shelf so that it can be placed on the rack.
Figure 1. Attaching Shelves to the Rack (Right Shelf Shown)
Move the sliding end of each shelf so that the shelf fits snug and level on to the rack and secure the shelves using the screws to the rack. (Figure 3-2-left and Figure 3-2-right).
Note: You must ensure that the shelves are installed at the same level in the rack.
Figure 2. Adjusting Shelves to Fit onto the Rack (Right Shelf Shown)Figure 3. Switch Shelves Installed
Mounting Ears Installation
The following figure shows the rack mounting ears, which secure the switch top to the rack. Attach the two rack mounting ears to each side of the switch. The inner side of each ear may include a latch to the locking mechanism that secures the ear to the rack. The two rack mounting ears are identical and will attach to the switch such that the securing screws are on the outside of the switch as shown.

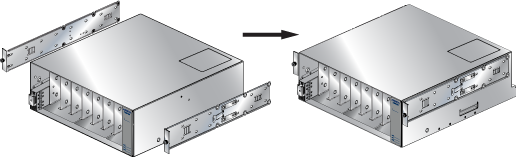

Figure 4. Rack Mounting Ears
Switch Insertion into Rack

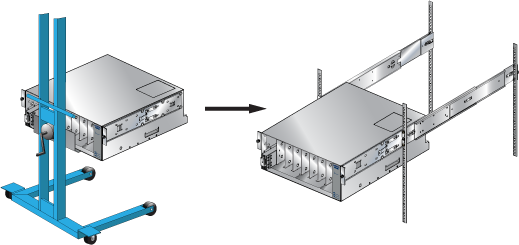

Use a lift to raise and align the switch with the installed shelves and insert the rollers on the rack mount ears into the shelves' channels. Push and slide the switch into the rack to secure.
Note: The rack mounting ears use only the top two rack units but you must allocate four rack units from the top of the shelves for the switch.
