Rear Panel

All switches covered by this guide use one of the rear panels shown below. Depending on the installed power supply module, the appearance could be different from those shown. Some of the PSUs have a velcro strap for cable management.

Note: All devices are designed to fit into a 19” rack. The appearance may be different than those shown based on PSU and fan modules used.
Note: Handle or bezel color indicates airflow direction.

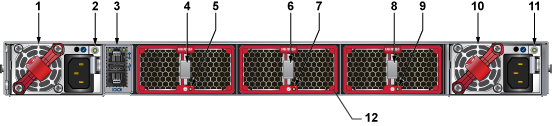

Figure 1. Rear Panel with Three Fan Modules (1RU)

1 Power supply module 1 5 Fan module 1 status LED 9 Fan module 3 status LED
2 Power supply module 1 status LED 6 Fan module 2 release 10 Power supply module 2
3 Management ports 7 Fan module 2 status LED 11 Power supply module 2 status LED
4 Fan module 1 release 8 Fan module 3 release 12 Fan module bezel1



Figure 2. Rear Panel with Ground Attach Point (2RU)
1 Fan module 1 4 Fan module 4 7 Earth grounding pad
2 Fan module 2 5 Power supply module 1
3 Fan module 3 6 Power supply module 2
