Parts List

This section lists the installation parts contained in the switch accessory kit. Each device has an accessory kit that contains the necessary parts to install the switch.

Two-post Rack Mount

The following accessories are available along with the device:

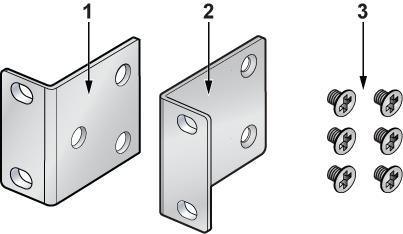

  • Figure 1. Two-post Rack Mount Kit Parts

    1

    L-bracket (left)

    2

    L-bracket (right)
    3

    Flat head screw M4x6mm

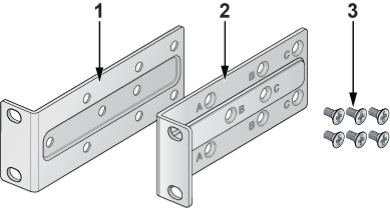

    Figure 2. Two-post Rack Mount Kit Parts (CCS-720DF-48Y-DC)

    1

    L-bracket (left)

    2

    L-bracket (right)
    3

    Flat head screw M4x6mm

  • Console Cables

    • CBL-00100 RJ45 <-> RJ45 CAT5E ethernet cable

    • CBL-00002 RJ45 <-> DB9 console cable

  • Power cable (specified during time of purchase as it's country-specific or no power cord)

Optional Accessories

The following are the optional accessories and should be ordered separately if required:

Spare SKU

Description

KIT-720

Spare Accessory kit for Arista 720D Series 1RU Switches

KIT-7010-4Post

Spare 4-post rack mount kit for 7010 switches

SKU and Product Details

The following are the list of SKU numbers related to the respective product.

Table 1. SKU and Product Details

SKU

Product Description

CCS-720DP-48S-2F

Arista 720DP, 48x1G PoE, 4x10G SFP+ switch, front to rear air, 2x950W AC

CCS-720DP-48S-M-S-2F

Arista 720DP, 48x1G POE, 4x10G SFP+ switch, expanded memory, front to rear air, 2x950W AC

CCS-720DP-24S-2F

Arista 720DP, 24x1G PoE, 4x10G SFP+ switch, front to rear air, 2x460W AC

CCS-720DP-24S-M-S-2F

Arista 720DP, 24x1G POE, 4x10G SFP+ switch, expanded memory, front to rear air, 2x460W AC

CCS-720DT-48S-2F

Arista 720DT, 48x1G, 4x10G SFP+ switch, front to rear air, 2x100W AC

CCS-720DT-48S-2R

Arista 720DT, 48x1G, 4x10G SFP+ switch, rear to front air, 2x100W AC

CCS-720DT-24S-2F

Arista 720DT, 24x1G, 4x10G SFP+ switch, front to rear air, 2x100W AC

CCS-720DT-24S-M-S-2F

Arista 720DT, 24x1G, 4x10G SFP+ switch, expanded memory, front to rear air, 2x100W AC

CCS-720DT-24S-2R

Arista 720DT, 24x1G, 4x10G SFP+ switch, rear to front air, 2x100W AC

CCS-720DF-48Y-2F

Arista 720DF, 48x1G SFP, 4x25G SFP28 switch, front to rear air, 2x200W AC

CCS-720DF-48Y-M-S-2F

Arista 720DF, 48x1G SFP, 4x25G SFP28 switch, expanded memory, front to rear air, 2x200W AC

CCS-720DP-24ZS-2F

Arista 720DP, 24x2.5G PoE, 4x10G SFP+ switch, front to rear air, 2x950W AC

CCS-720DP-48ZS-2F

Arista 720DP, 48x2.5G PoE, 4x10G SFP+ switch, front to rear air, 2x1800W AC

CCS-720DF-48Y-DC-2F

Arista 720DF, 48x1G SFP, 4x25G SFP28 switch, front to rear air, 2x240W DC
