Arista’s Wi-Fi 7 access points provide the highest capacity, best spectrum utilization and flexibility to deliver industry leading user experience in high density environments that require the best performance and security. They are ideal for critical, high-density networks serving a high volume of diverse clients and applications. Common deployment scenarios include large enterprises with national and international locations, university campuses and large healthcare and hospital facilities.

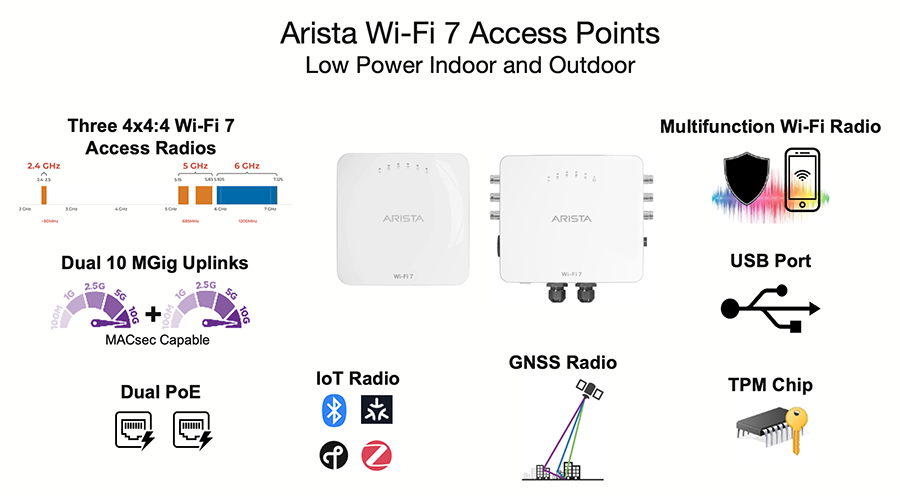

Highlights of our high-end enterprise-grade Wi-Fi 7 APs:
- 4x4 MIMO Tri Radio Access Point (2.4 GHz / 5 GHz / 6 GHz) supporting 802.11be on all the three radios
- Dedicated Tri-band 2x2 Multi-Function Radio for RF Scanning, WIPS, and Proactive Network Assurance
- Multi-Link Operation, Preamble Puncturing, Uplink/Downlink OFDMA, Uplink/Downlink MU-MIMO in all the three bands
- Application Monitoring, Troubleshooting, Spectrum Analysis, Locationing & other functionalities
- Inbuilt L1+L5 GNSS module for GPS
- Integrated IoT Radio with HADM enabled BLE for high accuracy locationing and support for OpenThread, Matter, ZigBee
- Tri-band 4 antenna connectors for C-460E, Tri-band 2 antenna connectors for O-435E access radios and tri-band 2 antenna connectors for Multi Functional Radio (applicable for C-460E and O-435E)
Check out these videos to see Arista’s Wi-Fi 7 capabilities in action.
Wi-Fi 7 Indoor Access Points
| Model Number |
C-460 / C-460E
|
C-430
|
C-400
|
|---|---|---|---|
| Description | Enterprise grade AP featuring concurrent 6GHz, 5GHz and 2.4GHz 4 stream 802.11be operation, integrated IoT support, integrated GNSS. Multi-function tri-band radio provides security, network assurance and AI/ML driven troubleshooting. |
C-430 Tri band 2x2:2 802.11be access point with internal antennas, dual 5 GbE interface and dedicated multi-function radio. Multi-function tri-band radio provides security, network assurance and AI/ML driven troubleshooting. |
C-400 Tri band 2x2:2 802.11be access point with internal antennas and 5 GbE interface. |
| Radio Components | 802.11b/g/n/ax/be radio (2.4 GHz) |
802.11b/g/n/ax/be radio (2.4 GHz) |
802.11b/g/n/ax/be radio (2.4 GHz) |
| 802.11a/n/ac/ax/be radio (5 GHz) |
802.11a/n/ac/ax/be radio (5 GHz) |
802.11a/n/ac/ax/be radio (5 GHz) |
|
| 802.11ax/be radio (6 GHz) |
802.11ax/be radio (6 GHz) |
802.11ax/be radio (6 GHz) |
|
| 802.11a/b/g/n/ac/ax multifunction radio | 802.11a/b/g/n/ac/ax/be multifunction radio | N/A | |
| BLE 5.3, HADM*, OpenThread*, Matter*, ZigBee* capable IoT radio |
BLE 5.3, HADM*, OpenThread*, Matter*, ZigBee* capable IoT radio |
N/A | |
| L1+L5 GNSS | L1+L5 GNSS | N/A | |
| Internal antenna/ External antenna / Internal directional antennas with software configurable wide (75x75) and narrow (45x45) beamwidths |
Internal antennas | Internal antennas | |
| Ports | 2 x 10 Gigabit 802.3bt PoE++ ports |
2x5 Gigabit 802.3at PoE+ ports |
1x5 Gigabit 802.3at PoE+ port |
| Console | Console | Console | |
| USB 2.0 | USB 2.0 | N/A | |
| Max Data Rate | 11.5 /5.76/1.4 Gbps | 5.75 /2.88 /0.7 Gbps | 5.75 /2.88 /0.7 Gbps |
| Spatial Streams | 4x4 (2.4GHz); 4x4 (5GHz); 4x4 (6GHz) |
2x2 (2.4GHz); 2x2 (5GHz); 2x2 (6GHz) |
2x2 (2.4GHz); 2x2 (5GHz); 2x2 (6GHz) |
| Channel Width | 20/40/80/160/320 MHz |
20/40/80/160/320 MHz |
20/40/80/160/320 MHz |
| Power | PoE++ PoE+ (reduced functionality) |
POE+ | PoE+ |
| DC power | DC power | DC power | |
| LTE Interference Mitigation | Yes | Yes | Yes |
| WiFi Alliance Certification | C-460 is certified, C-460D and C-460E are in process |
Pending | Pending |
| AFC Certification |
C-460E is certified. C-460D is in process. |
N/A | N/A |
| SKU | AP-C460, AP-C460E, AP-C460D |
AP-C430 | AP-C400 |
*Hardware is capable of technology. Software support will be provided in future upgrades.
Wi-Fi 7 Outdoor Access Points
| Model Number |
O-435/O-435E
|
O-405 / O-405E
|
|---|---|---|
| Description | Outdoor AP featuring concurrent 6GHz, 5GHz and 2.4GHz 2 stream 802.11be operation, integrated IoT support, integrated GNSS. Multi-function tri-band radio provides security, network assurance and AI/ML driven troubleshooting. |
O-405 Tri-Band 2x2:2 802.11be outdoor access point with 10Gbps SFP+, 5Gbps Ethernet, and integrated GNSS. |
| Radio Components | 802.11b/g/n/ax/be radio (2.4 GHz) |
802.11b/g/n/ax/be radio (2.4 GHz) |
| 802.11a/n/ac/ax/be radio (5 GHz) |
802.11a/n/ac/ax/be radio (5 GHz) |
|
| 802.11ax/be radio (6 GHz) |
802.11ax/be radio (6 GHz) |
|
| 802.11a/b/g/n/ac/ax/be multifunction radio |
N/A | |
| BLE 5.3, HADM*, OpenThread*, Matter*, ZigBee* capable IoT radio |
N/A | |
| L1+L5 GNSS | L1+L5 GNSS | |
| Internal antenna/ External antenna |
Internal antenna/ External antenna |
|
| Ports | 1 x 5 Gigabit 802.3bt PoE++ port | 1x5 Gigabit 802.3at PoE+ port |
| Console | 1x10 Gigabit SFP+ port | |
| Console | ||
| Max Data Rate | 5.75 / 2.88 / 0.7 Gbps | 5.75 / 2.88 / 0.7 Gbps |
| Spatial Streams | 2x2 (2.4GHz); 2x2 (5GHz); 2x2 (6GHz) |
2x2 (2.4GHz); 2x2 (5GHz); 2x2 (6GHz) |
| Channel Width | 20/40/80/160/320 MHz |
20/40/80/160/320 MHz |
| Power | PoE++ PoE+ (reduced functionality) |
POE+ |
| LTE Interference Mitigation | Yes | Yes |
| WiFi Alliance Certification | O-435 is certified, O-435E is in process |
Pending |
| AFC Certification |
O-435 and O-435E are certified | O-405 and O-405E are certified. |
| SKU | AP-O435, AP-O435E | AP-O405 |
*Hardware is capable of technology. Software support will be provided in future upgrades.
For complete country certification records, please visit the product certificate page on Arista website.
For Antenna selection for models with external antenna connectors, please see the Antenna Selection Guide.
All Arista Wi-Fi Access Points support WIPS functionality, either via the multi-function radio or with background scan enabled on the access radios.
