Status Indicators
Front Indicators
Switch Indicators
Front panel LEDs are located on the right side of the chassis and display system, fan, and power supply status. Appendix C displays the front panels of all switches covered by this guide.

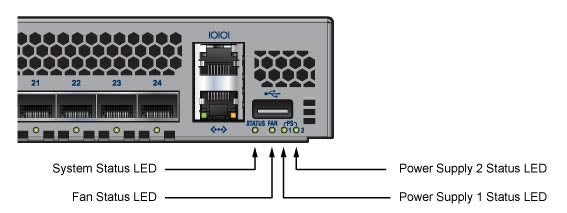

Figure A-1 shows 7124SX front panel LEDs.
Figure A-1: System Status Indicators

Table A-1 System Status LED States
LED State
Status
Blinking Green
System powering up.
Green
All power supplies and fans are operating normally.
Blue
The locater function is active.
Red
Two or more fans (any combination of fan module s or PSU fans) a re disconnected or malfunctioning. The switch will automatically execute a “graceful shutdown” shortly.

Table A-2 Fan Module Status LED States
LED State
Status
Green
All fans are operating normally.
Red
One or more fans are not inserted or have failed.
Table A-3 Power Supply Status LED States
LED State
Status
Off
Power supply is not inserted or is not powered.
Green
Power supply operating normally.
Red
Power supply has failed.
Port Indicators
Port LEDs, located in the vicinity of their corresponding ports, provide link and operational status. Figure A-2 displays the Port LED location on the 7124SX switch. Appendix C displays the port LED locations of all switches covered by this guide.
Figure A-2: Port LEDs
Table A-4 provides status conditions that correspond to port LED states. Port LED behavior for QSFP+ and SFP+ ports is consistent.
Table A-4 Port LED States
LED State
Status
Off
Port link is down.
Green
Port link is up.
Yellow
Port is software disabled.
Flashing Yellow
Port failed diagnostics.
Rear Status Indicators
Fan and power supply modules are accessed from the rear panel. Appendix D displays the rear panel of all switches covered by this guide.
Each fan and power supply module contains an LED that reports the module status.
The Fan Status LEDs are on the fan modules, as displayed in Figure A-3.
Figure A-3: Fan Status LED

Table A-5 Fan Status LED States
LED State
Status
Off
The fan module is inserted but not receiving power – it may not be properly seated.
Green
The fan is operating normally.
Red
The fan has failed or a power supply module was removed from the switch.
The Power Supply Status LEDs are on the power supply modules, as displayed in Figure A-4.
Figure A-4: Power Supply Status LED

Table A-6 Power Supply Status LED States
LED State
Status
Off
Power supply not connected to AC power or not inserted fully.
Green
Power supply operating normally.
Amber
Power supply has overheated or failed.
