Front Panel
This section describes the front panel of the Ethernet Switch (CCS-710P-12 and CCS-710P-16P).
This chapter contains the following topics:
CCS-710P-12 Front Panel

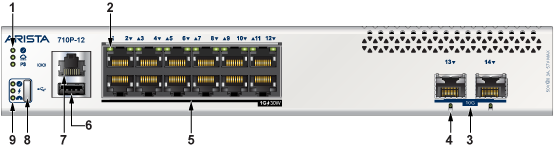

The CCS-710P-12 front panel includes the following key components:
1 |
System status LEDs |
2 |
1GE RJ45 port LEDs |
3 |
SFP+ ports |
4 |
SFP+ port LEDs |
5 |
Gigabit Ethernet RJ45 ports with 30W PSE |
6 |
USB port |
7 |
Console port |
8 |
Mode button |
9 |
Mode status LEDs |
CCS-710P-16P Front Panel

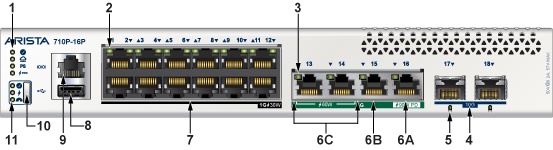

The CCS-710P-16P front panel includes the following key components:
1 |
System status LEDs |
2 |
1GE RJ45 port LEDs |
3 |
5GE port LEDs |
4 |
SFP+ ports |
5 |
SFP+ port LEDs |
6 |
6A: Uplink 5 Gigabit Ethernet RJ45 port with 90W PD 6B: Uplink 5 Gigabit Ethernet RJ45 port 6C: 5 Gigabit Ethernet RJ45 ports with 60W PSE |
7 |
Gigabit Ethernet RJ45 ports with 30W PSE |
8 |
USB port |
9 |
Console port |
10 |
Mode button |
11 |
Mode status LEDs |
Operating Mode Button
This section describes the functionality of the mode button located on the front panel of the switch.
