This appendix displays the front panel of all switches covered by this guide.

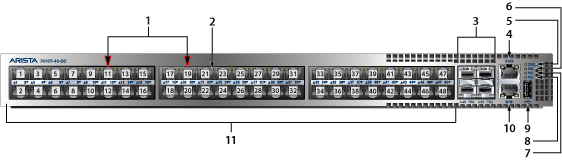

Figure 1. DCS-7010T-48 and DCS-7010T-48-DC
| 1 |
Port numbers |
5 |
System status LED |
9 |
USB port |
| 2 |
Port status LED |
6 |
Fan tray status LED |
10 |
Ethernet management port |
| 3 |
SFP+ Ports |
7 |
Power supply 1 status LED |
11 |
RJ-45 ports |
| 4 |
Console serial port |
8 |
Power supply 2 status LED |
|
|

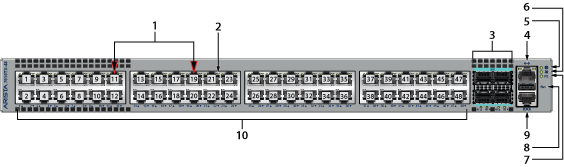

Figure 2. DCS-7010TX-48 and DCS-7010TX-48-DC
| 1 |
Port numbers |
5 |
System status LED |
9 |
Console serial port |
| 2 |
Port status LED |
6 |
Fan tray status LED |
10 |
RJ-45 ports |
| 3 |
SFP25 Ports |
7 |
Power supply status LED |
|
|
| 4 |
Ethernet management port |
8 |
USB port |
|
|
