Mounting Instructions using the Standard Package Contents

The mounting procedure can be divided into two parts:

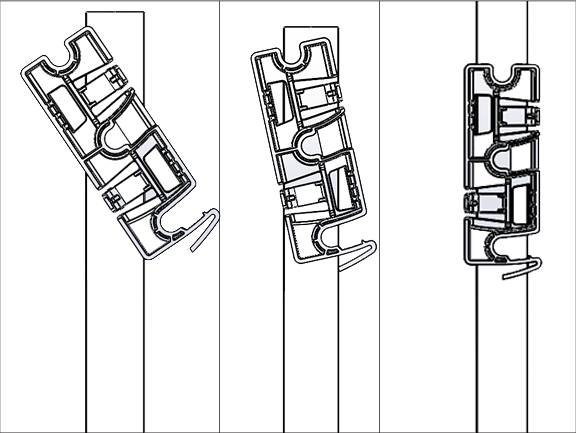

  1. Affixing the bracket to the T -grid: Use the mounting bracket to install the C-130E on the ceiling. Fix the bracket to the T-grid and rotate the bracket so that it snaps on the T-grid.

    The bracket is now parallel to an arm of the T-grid. Ensure that the bracket is properly snapped to the T-grid. Refer to the images given below.

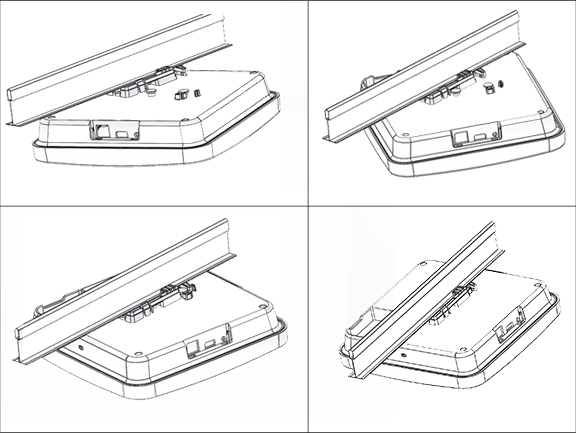

  2. Mounting C-130E on the bracket: Place the first mounting post on the rear-side of the device on to the lower notch of the bracket. Rotate the device such that the center mounting post fits in to the center notch on the bracket. Ensure that all the mounting posts on the rear-side of the device are snapped in to the respective notches on the bracket.

    The mounting posts on the rear-side of the device are now properly fit in the respective notches of the bracket and device is mounted properly.
