Front Panel

This appendix displays the front panel of all switches covered by this guide.

Note:

All devices are designed to fit into a 19” rack. The appearance may be different than those shown based on PSU and fan modules used.

The port speed groups support breakout configurations which could be EOS version dependent.

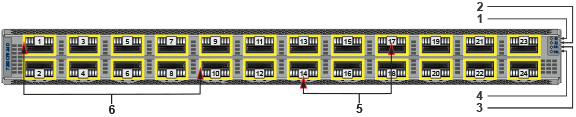

Figure 1. DCS-7280PR3-24 and DCS-7280PR3K-24

1 System status LED 3 Power supply 1 status LED 5 Port numbers
2 Fan status LED 4 Power supply 2 status LED 6 Port-speed group

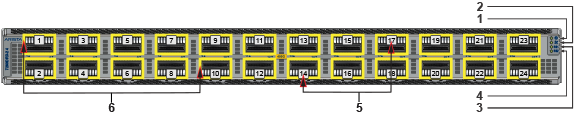

Figure 2. DCS-7280DR3-24 and DCS-7280DR3K-24

1 System status LED 3 Power supply 1 status LED 5 Port numbers
2 Fan status LED 4 Power supply 2 status LED 6 Port-speed group

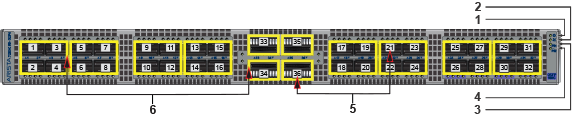

Figure 3. DCS-7280CR3-32P4, DCS-7280CR3K-32P4 and DCS-7280CR3K-32P4A

1 System status LED 3 Power supply 1 status LED 5 Port numbers
2 Fan status LED 4 Power supply 2 status LED 6 Port-speed group

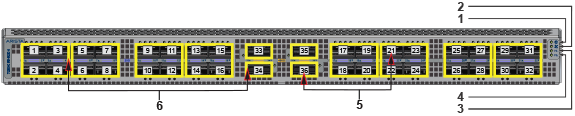

Figure 4. DCS-7280CR3-32D4, 7280CR3K-32D4 and DCS-7280CR3K-32D4A

1 System status LED 3 Power supply 1 status LED 5 Port numbers
2 Fan status LED 4 Power supply 2 status LED 6 Port-speed group

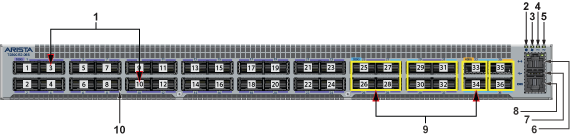

Figure 5. DCS-7280CR3-36S, DCS-7280CR3K-36S and DCS-7280CR3K-36A
1 Port numbers 5 Power supply 2 status LED 9 Port Speed Groups
2 System status LED 6 Ethernet Management port 10 Port Status LED
3 Fan status LED 7 USB port
4 Power supply 1 status LED 8 Console port (serial)

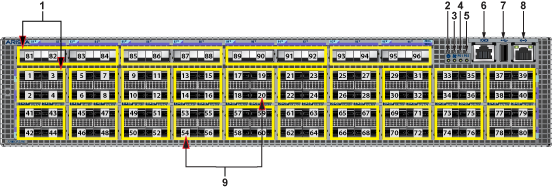

Figure 6. DCS-7280CR3-96 andDCS-7280CR3K-96
1 Port speed groups 4 Power supply 1 status LED 7 USB port
2 System status LED 5 Power supply 2 status LED 8 Ethernet Management port
3 Fan status LED 6 Console port (serial) 9 Port numbers

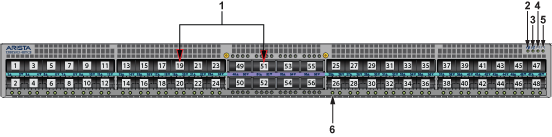

Figure 7. DCS-7280SR3-48YC8, DCS-7280SR3K-48YC8 and DCS-7280SR3K-48YC8A

1 Port numbers 3 Fan status LED 5 Power supply 2 status LED
2 System status LED 4 Power supply 1 status LED 6 Port status LED (port 25)

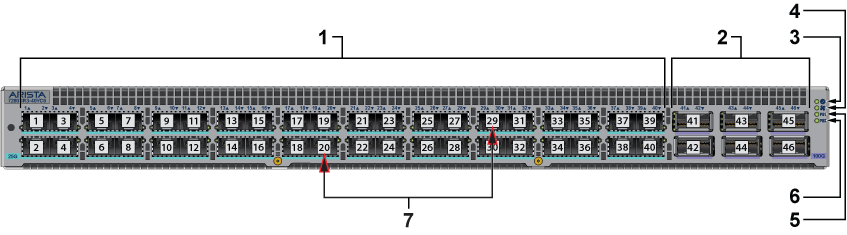

Figure 8. DCS-7280SR3-40YC6 and DCS-7280SR3E-40YC6
1 25G ports 4 Fan status LED 7 Port numbers
2 100G ports 5 Power supply 1 status LED
3 System status LED 6 Power supply 2 status LED

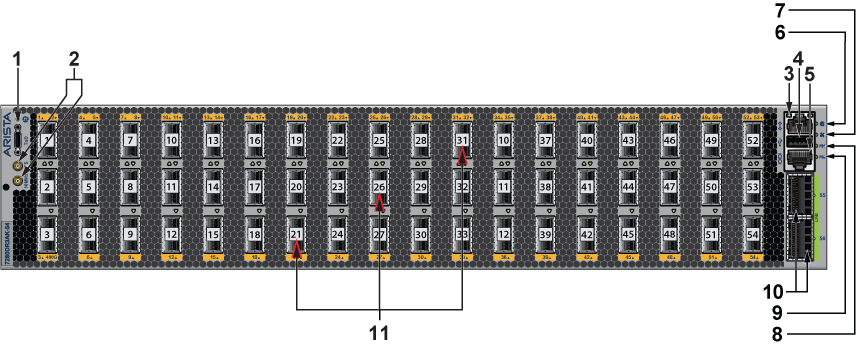

Figure 9. DCS-7280DR3A-54, DCS-7280DR3AK-54 and DCS-7280DR3AM-54
1 ToD Connector 5 Console port (serial) 9 Power supply 2 status LED
2 E-Sync clock connectors 6 System status LED 10 Line system ports (OSFP)
3 Ethernet management port 7 Fan status LED 11 Port numbers
4 USB port 8 Power supply 1 status LED

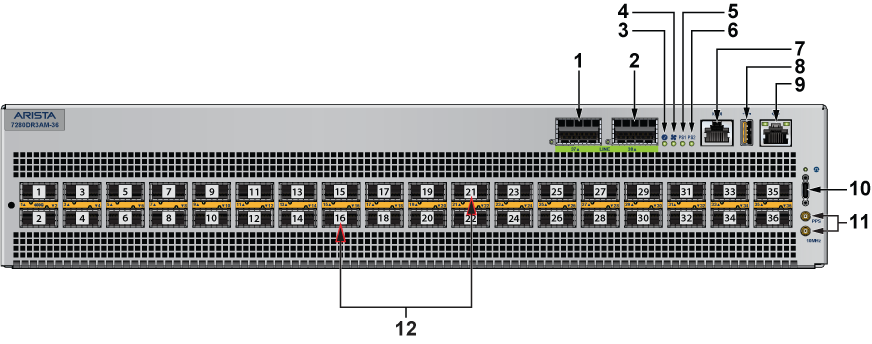

Figure 10. DCS-7280DR3A-36, DCS-7280DR3AK-36 and DCS-7280DR3AM-36
1 Line system port (OSFP) 5 Power supply 1 status LED 9 Ethernet management port
2 Line system port (OSFP) 6 Power supply 2 status LED 10 ToD Connector
3 System status LED 7 Console port (serial) 11 E-Sync clock connectors
4 Fan status LED 8 USB port 12 Port numbers
