Access Point Overview

C-200 is a dual-radio 802.11ax access point.

This chapter provides an overview of the C-200 access point (AP) and describes:

Front Panel

The front panel of the C-200 has four LEDs that indicate the status of various device functions.

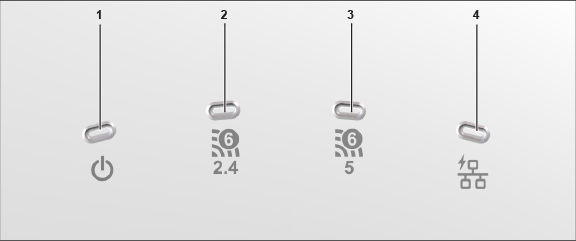

Figure 1. Front Panel LEDs
Table 1. Labels: Front Panel LEDs
Label Description
1 Power
2 2.4 GHz Radio
3 5 GHz Radio
4 LAN1

Power LED: The following table describes the Power LED states.

Table 2. Power LED States Description
  Green Orange
Solid Running normally NA
Blinking Received IP address, but not connected to the server Did not receive an IP address

LAN1 LED: ON when the corresponding interface is up.

Radio LEDs: ON when the corresponding radio is operational.

Rear Panel

The rear panel of the AP has its DC power port and 802.3af compliant PoE LAN port to power the device and connect it to a wired LAN.

Figure 2. Rear Panel
Table 3. Labels: Rear Panel
Label Description
1 LAN1
2 Console
3 Reset
4 Power
Table 4. C-200 Port Details
Port Description Connector Type Speed/Protocol
LAN 1 1 Gigabit Ethernet RJ-45 100M/1G Ethernet
Console Establish ‘config shell’ terminal session via serial connection RJ-45
  • RS 232 Serial (115200 bits per second)
  • Data bits:8; Stop bits: 1
  • Parity: None
  • Flow Control: None
Reset Reset to factory default settings port. Hold down and power cycle the device to reset. Pinhole push button N/A
Power 12V DC 5.5 mm overall diameter / 2.1 mm center pinhole N/A

When you reset the AP, the following settings are reset:

  • Config shell password is reset to config.
  • Server discovery value is erased and changed to the default, redirector.online.spectraguard.net (primary) and wifi-security-server (secondary).
  • All the VLAN configurations are lost.
  • If a static IP is configured on the AP, the IP address is erased and DHCP mode is set. The factory default IP address of the AP is 169.254.11.74.
