Front Panel
This section discusses the front panel of the following routers:
AWE-7230R-4TX-4S-F

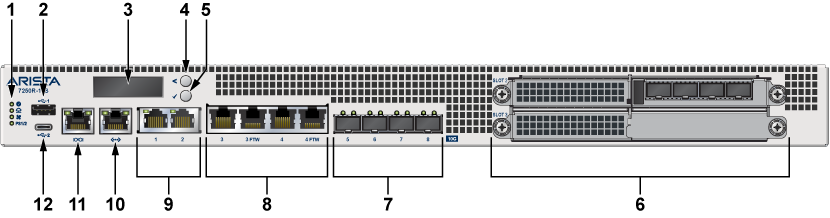

The AWE-7230R-4TX-4S-F Enterprise WAN router front panel includes the following key components:
1 | System status LEDs | 7 | 4x10G SFP+ ports |
2 | USB port Type-A | 8 | 4x1G/10G RJ45 (2 ports support fail-to-wire (FTW)) |
3 | LCD panel | 9 | 2x1G/10G RJ45 |
4 | LCD upper button | 10 | RJ45 Ethernet management port |
5 | LCD lower button | 11 | RJ45 Console port |
6 | 2x NIM (Network Interface Module) 3.0 slots | 12 | USB port Type-C |
AWE-7250R-16S-F

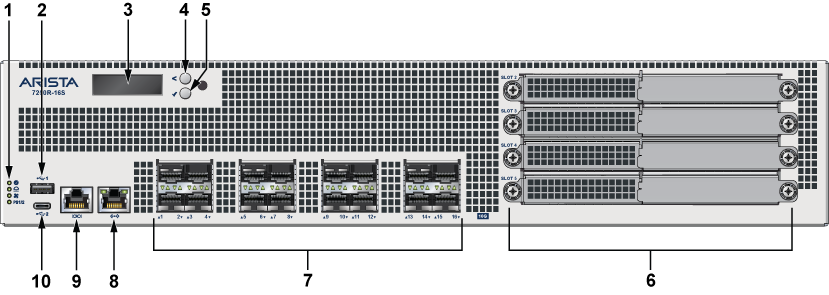

The Arista AWE-7250R-16S-F Enterprise WAN router front panel includes the following key components:
1 | System status LEDs | 6 | 4x NIM (Network Interface Module) 3.0 slots |
2 | USB port Type-A | 7 | 16x 10G SFP+ enhanced ports |
3 | LCD panel | 8 | RJ45 Ethernet management port |
4 | LCD upper button | 9 | Console port |
5 | LCD lower button | 10 | USB port Type-C |
