Rack Mounting the Switch

This section provides instructions on how to rack mount the switch.

This section discusses the following topic:

Two-Post Rack Mount

This section provides instructions for mounting the switch in a two-post rack.

To mount the switch onto a two-post rack, assemble the mounting brackets to the chassis, then attach the brackets to the rack posts. It includes:

Attaching Mounting Brackets to the Chassis

This section describes the steps to attach mounting brackets to the switch chassis.

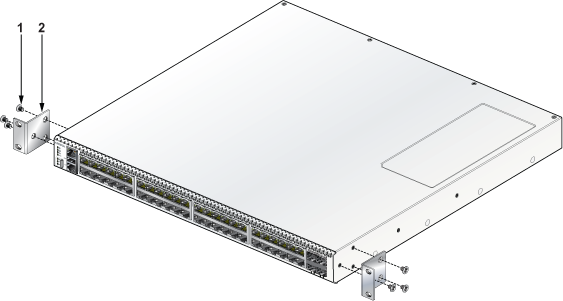

Figure 1. Attaching the Mounting Brackets
1 Flat head screw M4x6mm 2 L-bracket (MTL-01066)





Figure 2. Attaching the Mounting Brackets (CCS-720DF-48Y-DC)



Note: The Extended L-bracket shown in the following image is provided only for the CCS-720DF-48Y-DC model. If required, it can be ordered separately.





1

Flat head screw M4x6mm

 2 Extended L-bracket (MTL-05776)





Note: For more information regarding the screw size, refer to Screw Size Details.



  1. Position the L-bracket or Extended L-bracket (flush, 1.5" offset, or 2.5" offset) by aligning with the chassis holes on both sides of the switch and fixing it with M4x6mm flat head screws.
  2. Secure the mounting brackets firmly to the switch.


Inserting the Switch into the Rack

This section describes the steps to insert the switch into the rack.

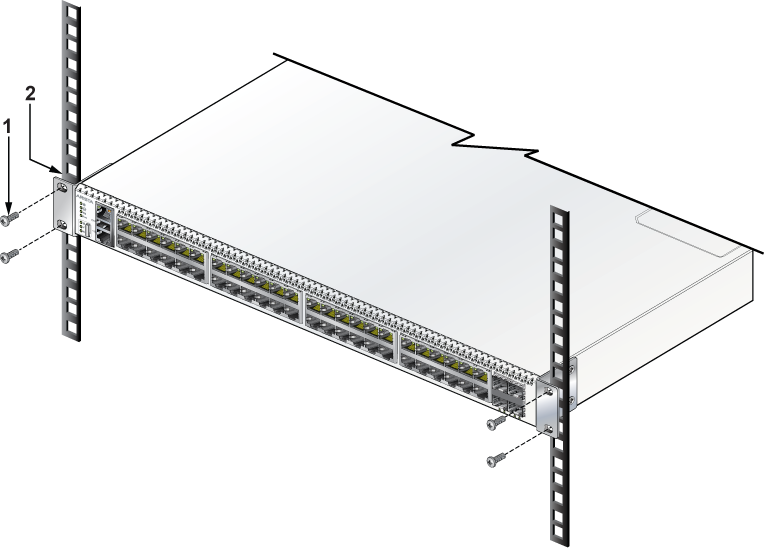

Figure 3. Inserting the Switch into the Rack
1 Screw M4x25mm (not included in the kit) 2 Two-post rack

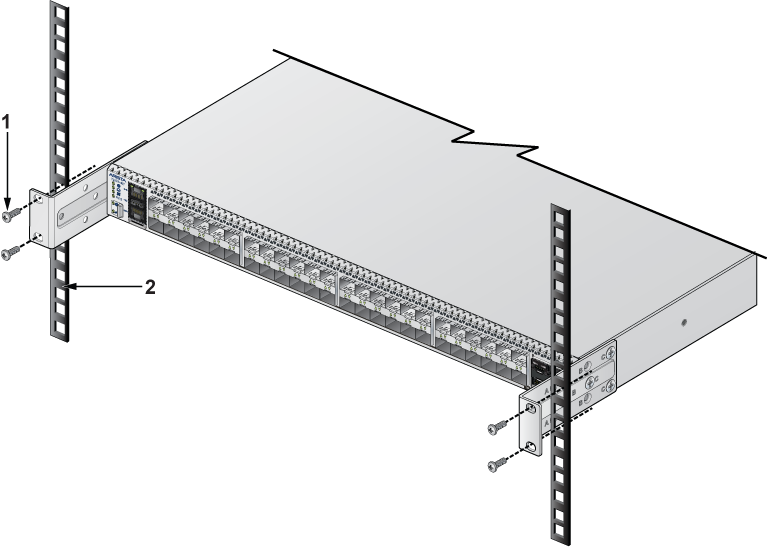

Figure 4. Inserting the Switch into the Rack (CCS-720DF-48Y-DC)



Note: The Extended L-bracket shown in the following image is provided only for the CCS-720DF-48Y-DC model. If required, it can also be ordered separately.





1 Screw M4x25mm (not included in the kit) 2 Two-post rack





Note: For more information regarding the screw size, refer to Screw Size Details.





Note:
  • Lift the chassis, attached with L-brackets, into the rack.
  • Place the switch into the rack by aligning it with the mounting bracket.
  • Position the flanges against the rack posts, as shown in the earlier figure.
  • Attach the bracket flanges to the rack posts.
