DMF Controller Nodes
This chapter describes the DMF Controller Nodes available from Arista Networks.
DMF Controller Node (DCA-DM-CDL) Specification
This section describes the LEDs for monitoring environmental and port status on the DMF Controller Node (DCA-DM-CDL).
The DMF Controller Node (DCA-DM-CDL) is an enterprise-class, 2-socket, 1-RU rack-mounted hardware appliance designed to deliver the right combination of performance, redundancy, and value in a high-density chassis.
| 1 | Controller Node security bezel |
| 2 | LCD menu buttons |
| 3 | LCD panel |

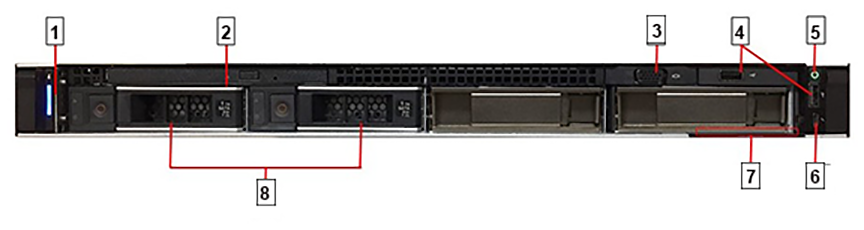

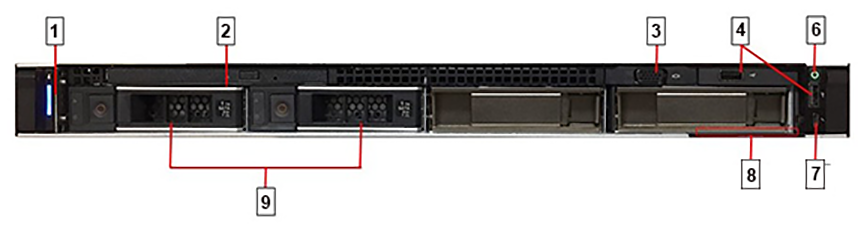

| 1 | System identification button / indicator | 5 | Power-on indicator / Power button |
| 2 | Optical drive | 6 | Micro USB (not supported) |
| 3 | Video connector | 7 | Information tag |
| 4 | USB ports | 8 | Hard drives |

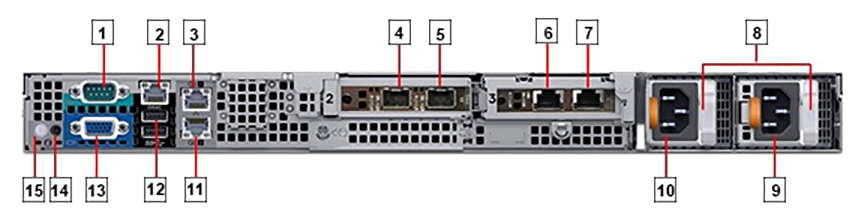

| 1 | Serial connector (default baud rate 115200) | 9 | Power supply 2 |
| 2 | iDRAC Ethernet interface | 10 | Power supply 1 |
| 3 | Ethernet connector 1 – Controller Node management port 1 (10/100/1000Mb/s) | 11 | Ethernet connector 2 – Controller Node management port 2 (10/100/1000Mb/s) |
| 4 | Ethernet connector 3 – Not supported | 12 | USB ports |
| 5 | Ethernet connector 4 – 10GbE SFP+ packet capture port | 13 | Video connector |
| 6 | Ethernet connector 5 – Not supported | 14 | System identification button |
| 7 | Ethernet connector 6 – Not supported | 15 | System identification indicator |
| 8 | PSU status indicators |
DMF Controller Node (DCA-DM-CDL(HWDL2)) Specification
This section describes the LEDs for monitoring environmental and port status on the DMF Controller Node (DCA-DM- CDL(HWDL2)).
The DMF Controller Node (DCA-DM-CDL(HWDL2)) is an enterprise-class, 2-socket, 1-RU rack-mounted hardware appliance designed to deliver the right combination of performance, redundancy, and value in a high-density chassis.

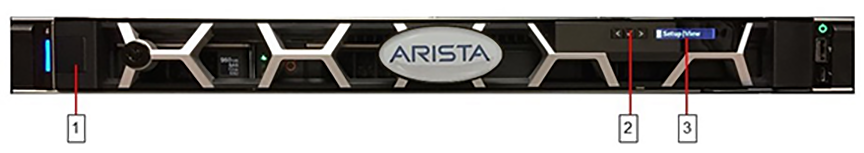

| 1 | Controller Node security bezel |
| 2 | LCD menu buttons |
| 3 | LCD panel |
| 1 | System identification button / indicator | 5 | Power-on indicator / Power button |
| 2 | Optical drive | 6 | Micro USB (not supported) |
| 3 | Video connector | 7 | Information tag |
| 4 | USB ports | 8 | Hard drives |

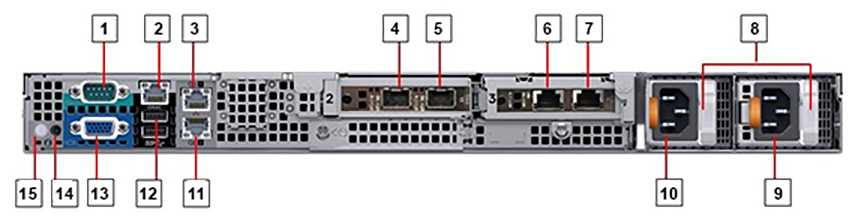

| 1 | Serial connector (default baud rate 115200) | 9 | Power supply 2 |
| 2 | iDRAC Ethernet interface | 10 | Power supply 1 |
| 3 | Ethernet connector 1 – Controller Node management port 1 (10/100/1000Mb/s) | 11 | Ethernet connector 2 – Controller Node management port 2 (10/100/1000Mb/s) |
| 4 | Ethernet connector 3 – Not supported | 12 | USB ports |
| 5 | Ethernet connector 4 – 10GbE SFP+ packet capture port | 13 | Video connector |
| 6 | Ethernet connector 5 – Not supported | 14 | System identification button |
| 7 | Ethernet connector 6 – Not supported | 15 | System identification indicator |
| 8 | PSU status indicators |
DMF Controller Node (DCA-DM-C450) Specification
This section describes the LEDs for monitoring environmental and port status on the DMF Controller Node (DCA-DM-C450).
The DMF Controller Node (DCA-DM-C450) is an enterprise-class, 2-socket, 1-RU rack-mounted hardware appliance designed to deliver the right combination of performance, redundancy, and value in a high-density chassis.

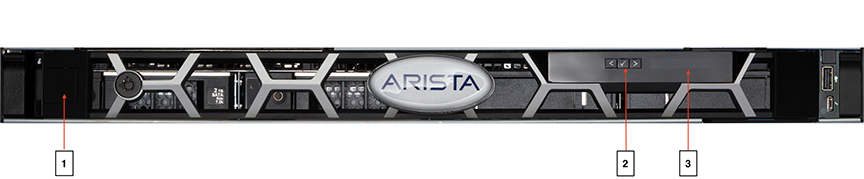

| 1 | Controller Node security bezel |
| 2 | LCD menu buttons |
| 3 | LCD panel |

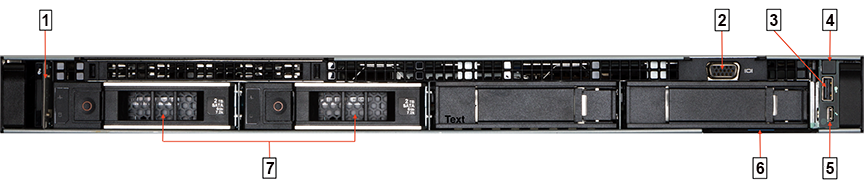

| 1 | System identification button / indicator | 5 | Micro USB (not supported) |
| 2 | Video connector | 6 | Information tag |
| 3 | USB ports | 7 | Hard drives |
| 4 | Power-on indicator / Power button |

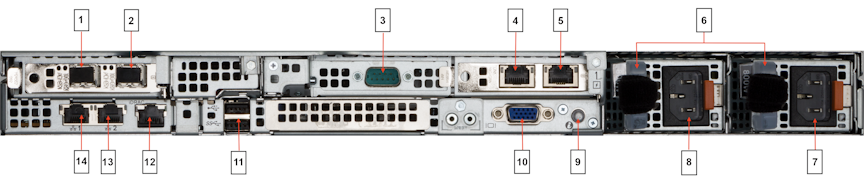

| 1 | Ethernet connector 3 – Not supported | 8 | Power supply 1 |
| 2 | Ethernet connector 4 – 10GbE SFP+ packet capture port | 9 | System identification indicator/button |
| 3 | Serial connector (default baud rate 115200) | 10 | Video connector |
| 4 | Ethernet connector 5 – Not supported | 11 | USB ports |
| 5 | Ethernet connector 6 – Not supported | 12 | iDRAC Ethernet interface |
| 6 | PSU status indicators | 13 | Ethernet connector 2 – Controller Node management port 2 (10/100/1000Mb/s) |
| 7 | Power supply 2 | 14 | Ethernet connector 1 – Controller Node management port 1 (10/100/1000Mb/s) |
