Front Panel

This section displays the front panel of all switches covered by this guide.

Note: All devices are designed to fit into a 19” rack. The appearance may be different than those shown based on the PSU and the fan modules used.

Port-Speed Groups

For devices that support the port-speed group feature, the groups are called out in the relevant illustrations with the ports in the group identified.

Some of the devices shown in this section have ports that are grouped together to provide flexibility in configuring Ethernet speeds for the individual members of the group. The default configuration supports the maximum possible Ethernet speed and/or other lower, allowable speeds by the individual members of the group. Care must be taken when inserting optics for lower speed connectivity as further configuration may be required for the port(s) in the group to operate as desired.

Front Panels

Figure 1. DCS-7050QX-32S

1 Console serial port 4 Power supply 1 status LED 7 Ethernet management port
2 System status LED 5 Power supply 2 status LED 8 Port numbers
3 Fan status LED 6 USB port





Figure 2. DCS-7050TX-48


1 Console serial port 4 Power supply 1 status LED 7 Ethernet management port
2 System status LED 5 Power supply 2 status LED 8 Port numbers
3 Fan status LED 6 USB port





Figure 3. DCS-7050QX2-32S


1 Console serial port 4 Power supply 1 status LED 7 Ethernet management port
2 System status LED 5 Power supply 2 status LED 8 Port numbers
3 Fan status LED 6 USB port





Figure 4. DCS-7050TX-64


1 Console serial port 4 Power supply 1 status LED 7 Ethernet management port
2 System status LED 5 Power supply 2 status LED 8 Port numbers
3 Fan status LED 6 USB port





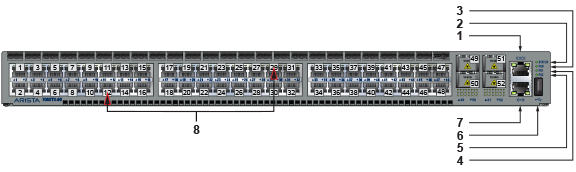

Figure 5. DCS-7050SX-64


1 Console serial port 4 Power supply 1 status LED 7 Ethernet management port
2 System status LED 5 Power supply 2 status LED 8 Port numbers
3 Fan status LED 6 USB port





Figure 6. DCS-7050TX-72


1 Console serial port 4 Power supply 1 status LED 7 Ethernet management port
2 System status LED 5 Power supply 2 status LED 8 Port numbers
3 Fan status LED 6 USB port





Figure 7. DCS-7050SX-72





Figure 8. DCS-7050TX-72Q

1 System status LED 3 Power supply 1 status LED 5 USB port
2 Fan status LED 4 Power supply 2 status LED 6 Port numbers





Figure 9. DCS-7050SX-72Q


1 System status LED 3 Power supply 1 status LED 5 USB port
2 Fan status LED 4 Power supply 2 status LED 6 Port numbers





Figure 10. DCS-7050TX-96


1 Console serial port 4 Power supply 1 status LED 7 Ethernet management port
2 System status LED 5 Power supply 2 status LED 8 Port numbers
3 Fan status LED 6 USB port

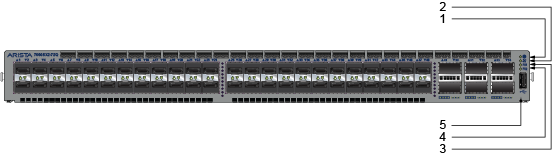

Figure 11. DCS-7050SX2-72Q


1 System status LED 3 Power supply 1 status LED 5 USB port
2 Fan status LED 4 Power supply 2 status LED 6 Port numbers





Figure 12. DCS-7050SX-96


1 Console serial port 4 Power supply 1 status LED 7 Ethernet management port
2 System status LED 5 Power supply 2 status LED 8 Port numbers
3 Fan status LED 6 USB port

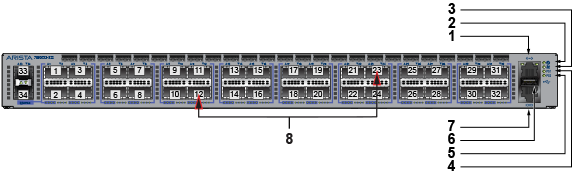

Figure 13. DCS-7050CX3-32S


1 Ethernet management port 4 Power supply 1 status LED 7 Console serial port
2 System status LED 5 Power supply 2 status LED 8 Port numbers
3 Fan status LED 6 USB port

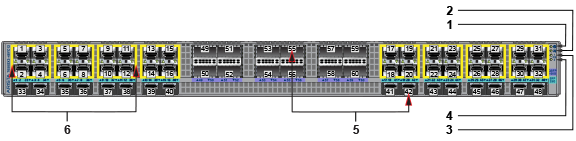

Figure 14. DCS-7050SX3-48YC12


1 System status LED 3 Power supply 1 status LED 5 Port numbers
2 Fan status LED 4 Power supply 2 status LED 6 Port-speed group





Figure 15. DCS-7050SX3-48YC8


1 System status LED 3 Power supply 1 status LED 5 Port numbers
2 Fan status LED 3 Power supply 2 status LED





Figure 16. DCS-7050CX3M-32S


1 Ethernet management port 4 Power supply 1 status LED 7 Console serial port
2 System status LED 5 Power supply 2 status LED 8 Port numbers
3 Fan status LED 6 USB port

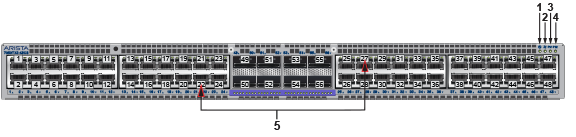

Figure 17. DCS-7050TX3-48C8


1 System status LED 3 Power supply 1 status LED 5 Port numbers
2 Fan status LED 4 Power supply 2 status LED

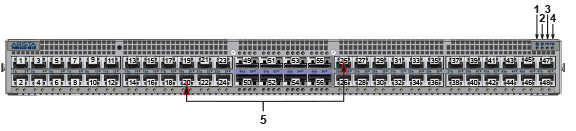

Figure 18. DCS-7050SX3-48C8


1 System status LED 3 Power supply 1 status LED 5 Port numbers
2 Fan status LED 4 Power supply 2 status LED
