Rear Panel
The section discusses the rear panel of the Ethernet Switch.
CCS-720DP-48S-2F / CCS-720DP-48S-M-S-2F

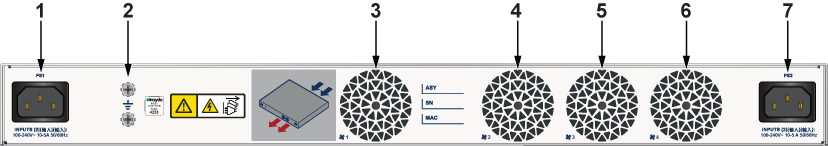

The CCS-720DP-48S-2F / CCS-720DP-48S-M-S-2F rear panel includes the following key components:
| 1 | Power Supply 1 (PS1) | 2 | Functional Grounding Point | 3 | Fan 1 |
| 4 | Fan 2 | 5 | Fan 3 | 6 | Fan 4 |
| 7 | Power Supply 2 (PS2) |
CCS-720DP-24S-2F / CCS-720DP-24S-M-S-2F

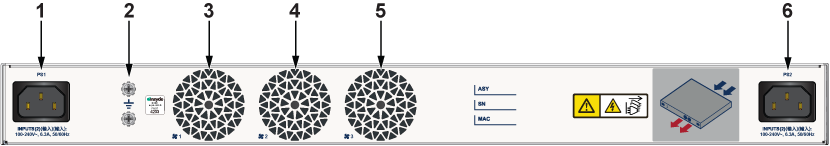

The CCS-720DP-24S-2F / CCS-720DP-24S-M-S-2F rear panel includes the following key components:
| 1 | Power Supply 1 (PS1) | 2 | Functional Grounding Point | 3 | Fan 1 |
| 4 | Fan 2 | 5 | Fan 3 | 6 | Power Supply 2 (PS2) |
CCS-720DT-48S-2F
The CCS-720DT-48S-2F rear panel includes the following key components:
| 1 | Power Supply 1 (PS1) | 2 | Functional Grounding Point | 3 | Fan 1 |
| 4 | Fan 2 | 5 | Power Supply 2 (PS2) |
CCS-720DT-24S-2F / CCS-720DT-24S-M-S-2F

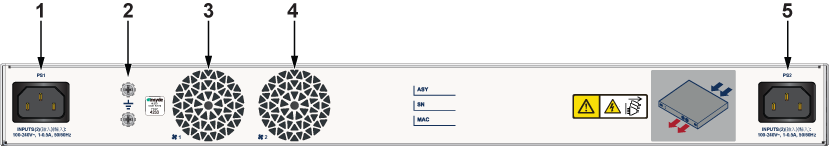

The CCS-720DT-24S-2F / CCS-720DT-24S-M-S-2F rear panel includes the following key components:
| 1 | Power Supply 1 (PS1) | 2 | Functional Grounding Point | 3 | Fan 1 |
| 4 | Fan 2 | 5 | Power Supply 2 (PS2) |
CCS-720DT-24S-2R
The CCS-720DT-24S-2R rear panel includes the following key components:
| 1 | Power Supply 1 (PS1) | 2 | Functional Grounding Point | 3 | Fan 1 |
| 4 | Fan 2 | 5 | Power Supply 2 (PS2) |
CCS-720DT-48S-2R

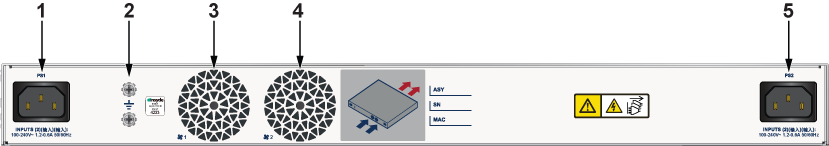

The CCS-720DT-48S-2R rear panel includes the following key components:
| 1 | Power Supply 1 (PS1) | 2 | Functional Grounding Point | 3 | Fan 1 |
| 4 | Fan 2 | 5 | Power Supply 2 (PS2) |
CCS-720DF-48Y-2F / CCS-720DF-48Y-M-S-2F
The CCS-720DF-48Y-2F / CCS-720DF-48Y-M-S-2F rear panel includes the following key components:
| 1 | Power Supply 1 (PS1) | 2 | Functional Grounding Point | 3 | Fan 1 |
| 4 | Fan 2 | 5 | Fan 3 | 6 | Power Supply 2 (PS2) |
CCS-720DF-48Y-DC-2F
The CCS-720DF-48Y-DC-2F rear panel includes the following key components:
| 1 | Power Supply 1 (PS1) | 2 | Functional Grounding Point | 3 | Fan 1 |
| 4 | Fan 2 | 5 | Fan 3 | 6 | Power Supply 2 (PS2) |
CCS-720DF-48Y-HVDC-2F
The CCS-720DF-48Y-HVDC-2F rear panel includes the following key components:
| 1 | Power Supply 1 (PS1) | 2 | Functional Grounding Point | 3 | Fan 1 |
| 4 | Fan 2 | 5 | Fan 3 | 6 | Power Supply 2 (PS2) |
CCS-720DP-24ZS-2F
The CCS-720DP-24ZS-2F rear panel includes the following key components:
| 1 | Power Supply 1 (PS1) | 2 | Functional Grounding Point | 3 | Fan 1 |
| 4 | Fan 2 | 5 | Fan 3 | 6 | Fan 4 |
| 7 | Power Supply 2 (PS2) |
CCS-720DP-48ZS-2F

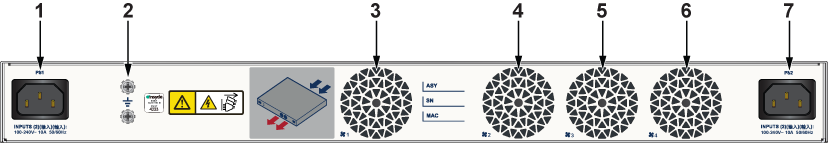

The CCS-720DP-48ZS-2F rear panel includes the following key components:
| 1 | Power Supply 1 (PS1) | 2 | Functional Grounding Point | 3 | Fan 1 |
| 4 | Fan 2 | 5 | Fan 3 | 6 | Fan 4 |
| 7 | Power Supply 2 (PS2) |
CCS-720DT-48S-DC-2F
The CCS-720DT-48S-DC-2F rear panel includes the following key components:
CCS-720DT-48S-DC-2F Rear Panel
| 1 | Power Supply 1 (PS1) | 2 | Functional Grounding Point | 3 | Fan 1 |
| 4 | Fan 3 | 5 | Power Supply 2 (PS2) |
CCS-720DT-48S-EHW-MV3-2F
The CCS-720DT-48S-EHW-MV3-2F rear panel includes the following key components:
CCS-720DT-48S-EHW-MV3-2F Rear Panel
| 1 | Power Supply 1 (PS1) | 2 | Functional Grounding Point | 3 | Fan 1 |
| 4 | Fan 2 | 5 | Power Supply 2 (PS2) |
CCS-720DT-48S-EHW-2R
The CCS-720DT-48S-EHW-2R rear panel includes the following key components:
CCS-720DT-48S-EHW-2R Rear Panel
| 1 | Power Supply 1 (PS1) | 2 | Functional Grounding Point | 3 | Fan 1 |
| 4 | Fan 2 | 5 | Fan 3 | 6 | Fan 4 |
| 7 | Power Supply 2 (PS2) |
CCS-720DT-48S-HV-JHW-2F
The CCS-720DT-48S-HV-JWH-2F rear panel includes the following key components:
| 1 | Power Supply 1(PS1) | 2 | Functional Grounding Point | 3 | Fan 1 |
| 4 | Fan 2 | 5 | Power Supply 2(PS2) |
