Rear Panel

All switches covered by this guide use one of the rear panels shown below. Some of the PSUs have a velcro strap for cable management.

Note: All devices are designed to fit into a 19” rack. The appearance may be different than those shown based on PSU and fan modules used.
Note: Handle or bezel color indicates airflow direction.

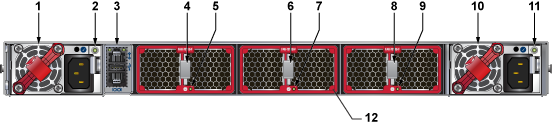

Figure 1. Rear Panel with Three Fan Modules (1RU)

1 Power supply module 1 5 Fan module 1 status LED 9 Fan module 3 status LED
2 Power supply module 1 status LED 6 Fan module 2 release 10 Power supply module 2
3 Management ports 7 Fan module 2 status LED 11 Power supply module 2 status LED
4 Fan module 1 release 8 Fan module 3 release 12 Fan module bezel1



Figure 2. Rear Panel with Ground Attach Point (2RU)
1 Fan module 1 4 Fan module 4 7 Earth grounding pad
2 Fan module 2 5 Power supply module 1
3 Fan module 3 6 Power supply module 2
