Front Panel

This appendix displays the front panel of all switches covered by this guide.

Note: All devices are designed to fit into a 19” rack.
Figure 1. DCS-7060DX5-64 and DCS-7060DX5-64E
1 Port numbers 3 Fan status LED 5 Power supply 2 status LED
2 System status LED 4 Power supply 1 status LED 6 Port status LED



Figure 2. DCS-7060PX5-64E

1 System status LED 3 Power supply 1 status LED 5 Port numbers
2 Fan status LED 4 Power supply 2 status LED 6 Port status LED



Figure 3. DCS-7060DX5-32

1 System status LED 3 Power supply 1 status LED 5 Port numbers
2 Fan status LED 4 Power supply 2 status LED 6 Port status LED

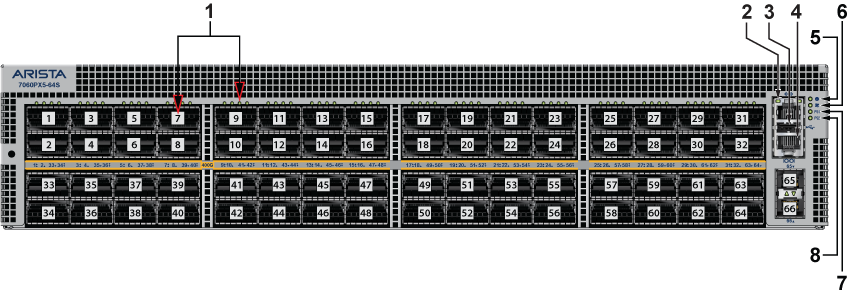

Figure 4. DCS-7060DX5-64S
1 Port number and Port Status LED 4 Console (serial) port 7 Power supply 1 status LED
2 Ethernet management port 5 System status LED 8 Power supply 2 status LED
3 USB port 6 Fan status LED
