Parts List
Each switch provides an accessory kit that contains parts that are required to install the switch into a four-post rack. Two-post rack mount parts are available through your sales representative. The following sections list the installation parts provided by the accessory kit.
Parts Used in All Configurations
| Quantity | Description |
|---|---|
| One for each AC power supply module supplied with switch. | Power cables: 14 AWG, C19-C20. |
| One for each DC power supply module supplied with switch. | DC Adapter (Arista part number CON-00581; part number G10TBL2021100211HR; Figure 1), Terminal Block, M4 Lug. |
| One | RJ-45 Patch Panel Cables, 2 meters. |
| One | RJ-45 to DB9 Adapter Cable, 2 meters. |
Warning: All provided power cables are for use only with Arista products.

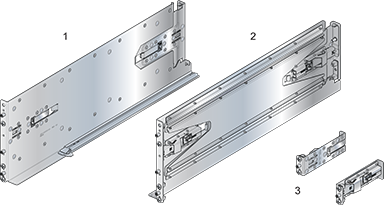

Four-Post Rack Mount Parts
| Quantity | Description |
|---|---|
| 2 | Mounting Ears |
| 1 | Left shelf |
| 1 | Right shelf |
| 1 | Left shelf |
| 2 | Right shelf |
| 3 | Mounting ears |
Four-Post Rack Mount Kit (Optional - 106-575-074-00)
| Part Number | Quantity | Description | Rack Type |
|---|---|---|---|
| 036-030-014 | 18 | M610 clip nuts | Round hole |
| 036-023-025 | 18 | M6 cage nuts | Square hole |
| 036-020-051 | 18 | 12-24 x .50 screws | Threaded hole |
| 106002508 | 18 | M6 x .50 screws | Square, round, and threaded hole |
| 036-701-148 | 18 | 10-32 x .50 screws | Threaded hole |
Two-Post Rack Mount Parts
Two-post rack mount parts for DCS-7304 and DCS-7308 switches are available through your sales representative. Two-post rack mounts are not supported for DCS-7316 switches.
| Quantity | Description |
|---|---|
| 2 | Center-mount brackets. |
| 16 (DCS-7304)
20 (DCS-7308) |
M4x8 panhead Phillips screws. |
| 1 | Center-mount brackets (7308 only) | 3 | M4x8 panhead Phillip Screws |
| 2 | Center-mount brackets (7304 only) |
