Front Panels

The following illustration displays the front panel of all switches covered by this guide.

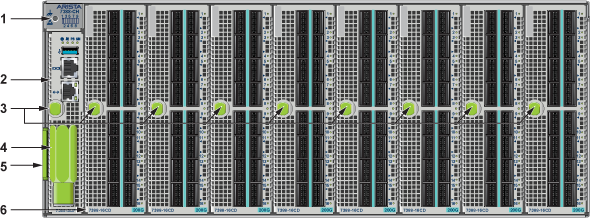

Figure 1. DCS-7388X5 Front Panel (fully populated)
1 ESD Attach Point 3 Supervisor and Linecard Ejector Handle (Release) and Latch Indicator Button 5 Pull Tag (for Switch Information)
2 Supervisor Module 4 Supervisor and Linecard Removal Tool 6 Linecard
Note: Touch points are colored green.
