Rear Panels

The following illustration displays the rear panel of all switches covered by this guide.

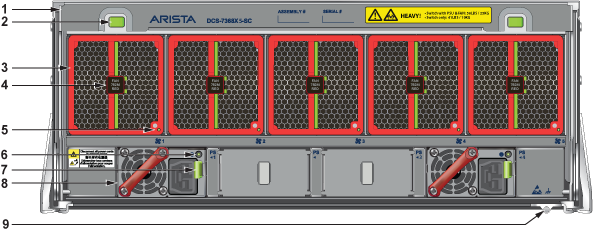

Figure 1. DCS-7388X5 Rear Panel
1 Switch Card Module Release Handle 4 Fan Module Release 7 PSU Release
2 Switch Card Module Release Buttons 5 Fan Status LED 8 PSU
3 Fan 6 PSU Status LED 9 Ground
Note: Touch points are colored green.
