Parts List

The following topics are covered in this section:

Each switch has an accessory kit that contains parts required to install the switch.Table 1 provides further details on the accessory kit for each switch. The following sections in the chapter list the installation parts provided by the accessory kit in more details.

Table 1. Accessory Kits for the Modular Switches
  755 758
Common cables and accessories Included Included
Two-post rack mount kit (KIT-CCS-750 Included Included
Four-post rack mount kit (KIT-CCS-750-4P) Optional Optional
Four-post rack mount kit (KIT-CCS-750-4PL) Optional Optional
Optional
Power Cords



Warning: All provided power cables are for use only with Arista products.



Câbles d’alimentation doivent être utilisés uniquement avec des produits de Arista.






Parts Used in All Rack Mount Configurations

Cables

Table 2. Cables Provided in Accessory Kit
Quantity Description
1 RJ45 To DB9 Adapter with a 6-foot rolled cable.
1 Seven-foot RJ45 Patch panel cable.



Getting-Started Booklet

One 2-page document.

Two-Post Rack Mount Parts

The following sections list the parts provided in the accessory kit for two-post rack mount installations.

Table 3. Two-Post Rack Mount Parts
Quantity Description
1 Cradle assembly.
4 Mounting brackets/ears (flange).
16 Rack mounting screws and rack nuts
16 Flat-head screws

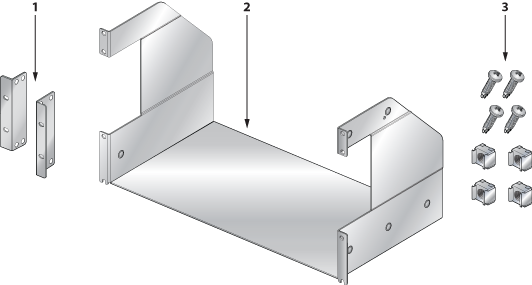

Figure 1. Two-Post Rack Mount Parts

1 Mounting brackets/ears 3 Rack mounting screws and rack nuts
2 Cradle assembly



Note: There may be extra parts after a CCS-755 installation.



Four-Post Rack Mount Parts (Optional)

The following sections list the parts provided in the accessory kit for four-post rack mount installations.

Table 4. Four-Post Rack Mount Parts
Quantity Description
1 Cradle assembly.
4 Mounting brackets/ears (flange).
20 Rack mounting screws and rack nuts
16 Flat-head screws

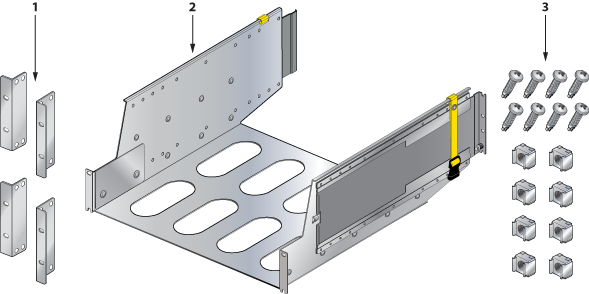

Figure 2. Four-PostRack Mount Parts

1 Mounting brackets/ears 3 Rack mounting screws and rack nuts
2 Cradle assembly



Four-Post (Extended Depth) Rack Mount Parts (Optional)

The following sections list the parts provided in the accessory kit for four-post rack mount installations.

Table 5. Four-Post Rack Mount Parts
Quantity Description
1 Cradle assembly.
4 Mounting brackets/ears (flange).
20 Rack mounting screws and rack nuts
16 Flat-head screws

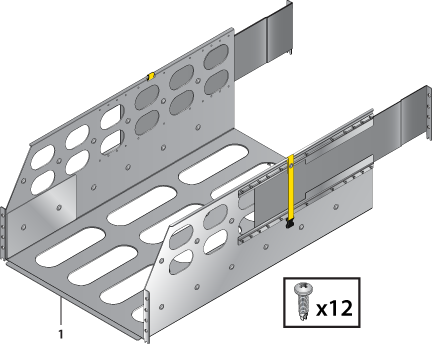

Figure 3. Four-PostRack Mount Parts

1 Mounting brackets/ears 3 Rack mounting screws and rack nuts
2 Cradle assembly
