Rear Panel

This appendix displays the rear panel of all switches covered by this guide.

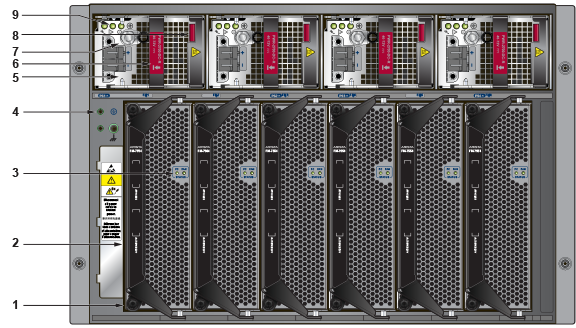

Figure 1. DCS-7504N Rear Panel (fully populated)
1 Fabric module screw 4 Chassis ground 7 Ground
2 Fabric module ejector handle 5 PSU 8 Ejector button
3 Fabric module status LEDs 6 Release lever 9 Status LEDs

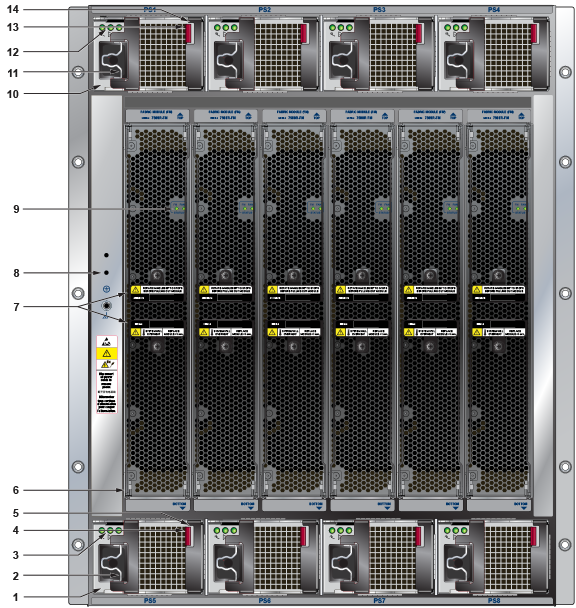

Figure 2. DCS-7508N rear panel (fully populated)
1 PSU bottom row (PS5) 6 Fabric module 11 Power cord clip (optional)
2 Power cord clip (optional) 7 Fabric module ejector handles 12 Status LEDs (PS1)
3 Status LEDs (PS5) 8 Chassis ground (secondary) 13 Ejector button
4 Ejector button 9 Fabric module status LEDs 14 Release lever
5 Release lever 10 PSU top row (PS1)

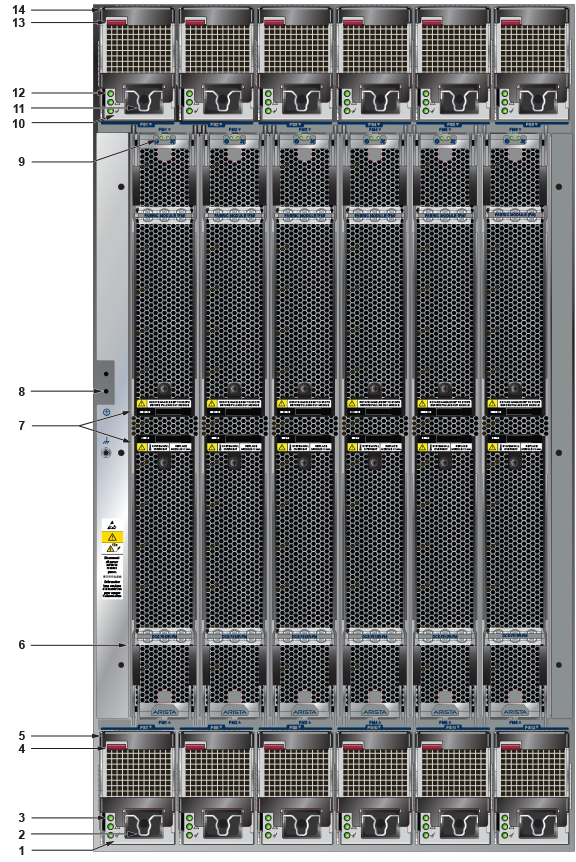

Figure 3. DCS-7512N Rear Panel (fully populated)
1 PSU bottom row (PS7) 6 Fabric module 11 Power cord clip (optional)
2 Power cord clip (optional) 7 Fabric module ejector handles 12 Status LEDs (PS1)
3 Status LEDs (PS7) 8 Chassis ground (secondary) 13 Ejector button
4 Ejector button 9 Fabric module status LEDs 14 Release lever
5 Release lever 10 PSU top row (PS1)

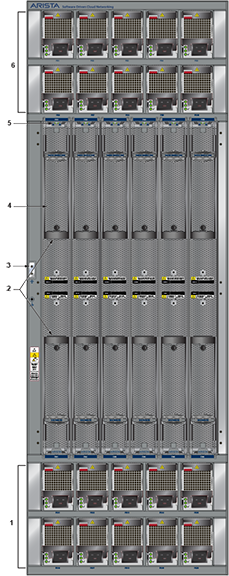

Figure 4. DCS-7516N Rear Panel (fully populated)
1 Power domain 2 (PSU11-PSU20) 4 Fabric module
2 Fabric module ejector handles 5 Fabric module status LEDs
3 Chassis ground (secondary) 6 Power domain 1 (PSU1-PSU10)
