Rear Panel

The section describes the rear panel of the following router.

7220R Enterprise WAN Router

The Arista 7220R Enterprise WAN router rear panel includes the following key components:

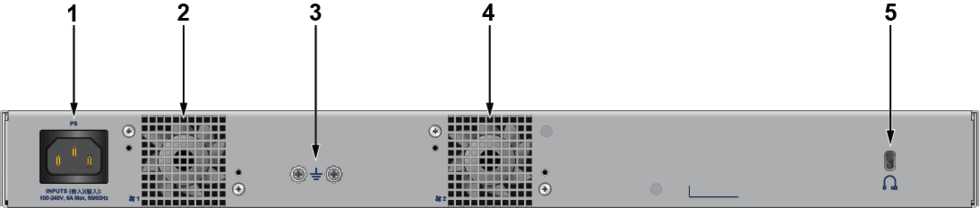

Figure 1. Rear Panel



1 Power supply 1 (PS1) 4 Fan 2
2 Fan 1 5 Kensington lock
3 Functional grounding point
