Front Panel

This section displays the front panel of all switches covered by this guide.

Note:

All devices are designed to fit into a 19” rack. The appearance may differ from those shown based on PSU and fan modules and the supported ports.

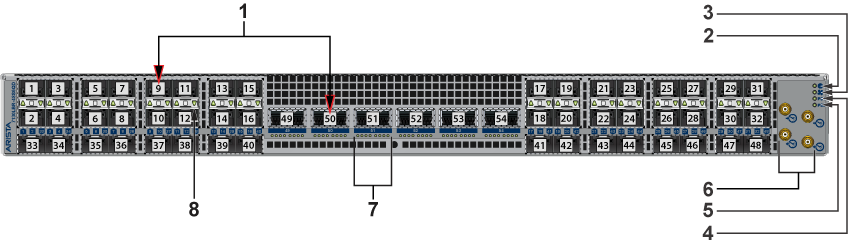

Figure 1. DCS-7130LBR-48S6QD
1 Port numbers 4 Power supply 1 status LED 7 Port status LEDs (QSFP-DD)
2 System status LED 5 Power supply 2 status LED 8 Port status LED (SFP+)
3 Fan status LED 6 PPS ports

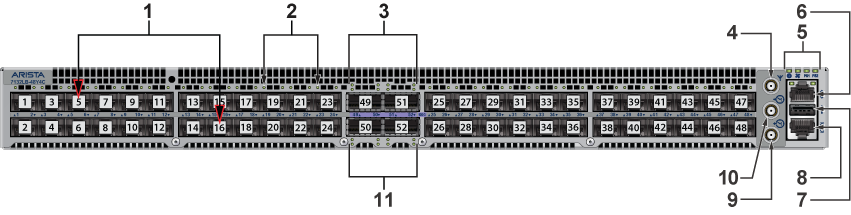

Figure 2. DCS-7132LB-48Y4C
1 Port numbers 5 Status LEDs (System, Fan, PS1, PS2) 9 PPS port (output)
2 Port status LEDs (SFP28) 6 Ethernet management port 10 PPS port (input)
3 Port status LEDs (QSFP28) 7 USB port 11 Port status LEDs (QSFP28)
4 PPS port 8 Console (serial) port

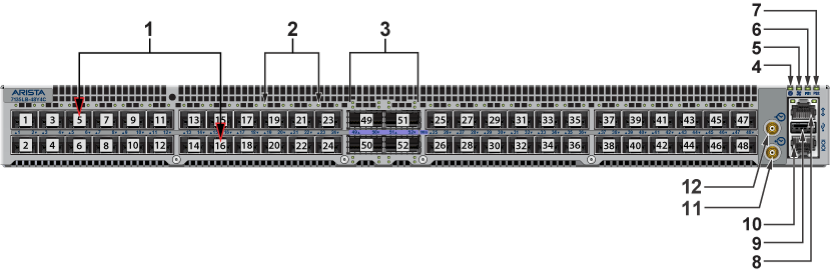

Figure 3. DCS-7135LB-48Y4C

1 Port numbers 5 Fan status LED 9 USB port
2 Port status LED (SFP28) 6 Power supply 1 status LED 10 Console port (serial)
3 Port status LEDs (QSFP28) 7 Power supply 2 status LED 11 PPS port (output)
4 System status LED 8 Ethernet Management port 12 PPS port (input)

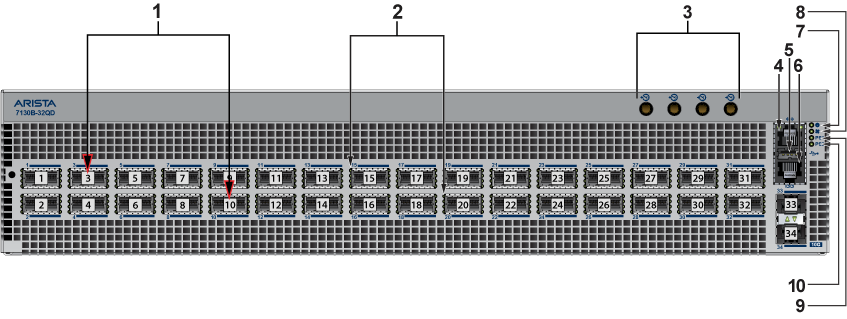

Figure 4. DCS-7130B-32QD
1 Port numbers 5 USB port 9 Power supply 1 status LED
2 Port status LEDs (QSFP-DD) 6 Console port (serial) 10 Power supply 2 status LED
3 PPS ports 7 System status LED
4 Ethernet Management port 8 Fan status LED

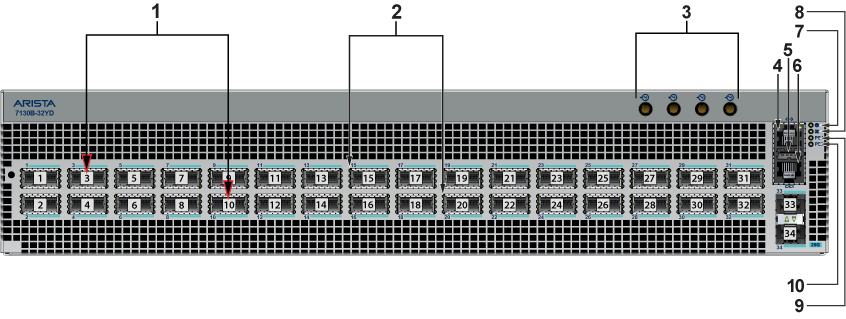

Figure 5. DCS-7130B-32YD
1 Port numbers 5 USB port 9 Power supply 1 status LED
2 Port status LEDs (QSFP-DD) 6 Console port (serial) 10 Power supply 2 status LED
3 PPS ports 7 System status LED
4 Ethernet Management port 8 Fan status LED
