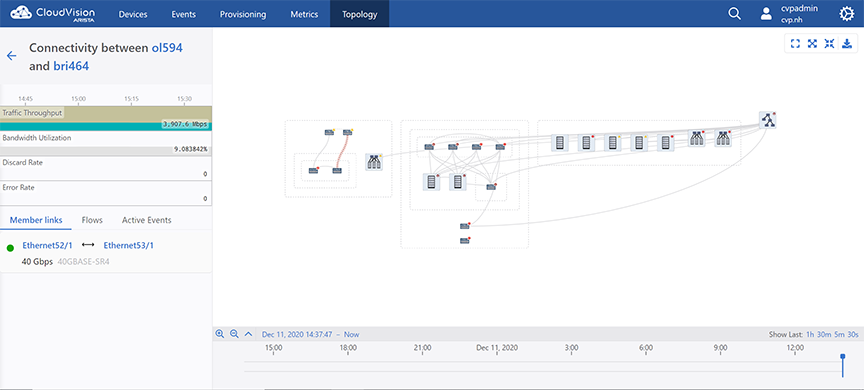

To view the links panel, click on a connectivity link between two components on the right panel.

Links represent connections between devices or clusters of devices. If two devices or clusters have at least one network connection, a link is drawn to connect them. If they have many network connections, they still have a single link in the topology view and information provided for the link is aggregated over those connections. Expanding and collapsing containers expand and collapse links; you may sometimes want to expand containers to see links in greater detail.

This screen provides the following information of the selected connectivity link:

• Click on a device name to view the corresponding device panel.

• Metrics - Displays statistics of traffic throughput, bandwidth utilization, discard rate, and error rate.

  Note: Hover the cursor on the metrics to view metrics at the corresponding time.

• Member Links - Displays the list of connected ports.

  Note: Click on any connected port link to view the corresponding Interface Overview screen.

• Flows - Displays traffic flows active on the selected connectivity link.

  Note: Clicking on a listed traffic flow link provides information on connected devices.

• Events - Displays events of the selected connectivity link. Click on an event link to view the corresponding Event Details screen.

  Note: This option is available only when the Show active events option is enabled in the Topology Options panel. See Topology Options Pane.
