Customizing the Home Screen and Dashboard Logo

CloudVision enables you to customize the visible options and dashboard logo shown on the home page. You change the visible options and dashboard logo by customizing them from the Settings page.

By default, no dashboard logo is selected. The image you select for the logo appears in the dashboard next to the notifications icon.

Note: Note Any image you select for either the Home screen background or dashboard logo must not exceed 200 KB for each image. In addition, the images must JPG, PNG, or GIF.

Complete the following steps to customize the visible and dashboard logo:

  1. Login to CVP.
  2. Click the gear icon at the upper right corner of the page.
  3. Click Settings in the left menu.
  4. Select the required options provided under Basic Settings, Beta Features, Cluster Management, and Troubleshooting sections.

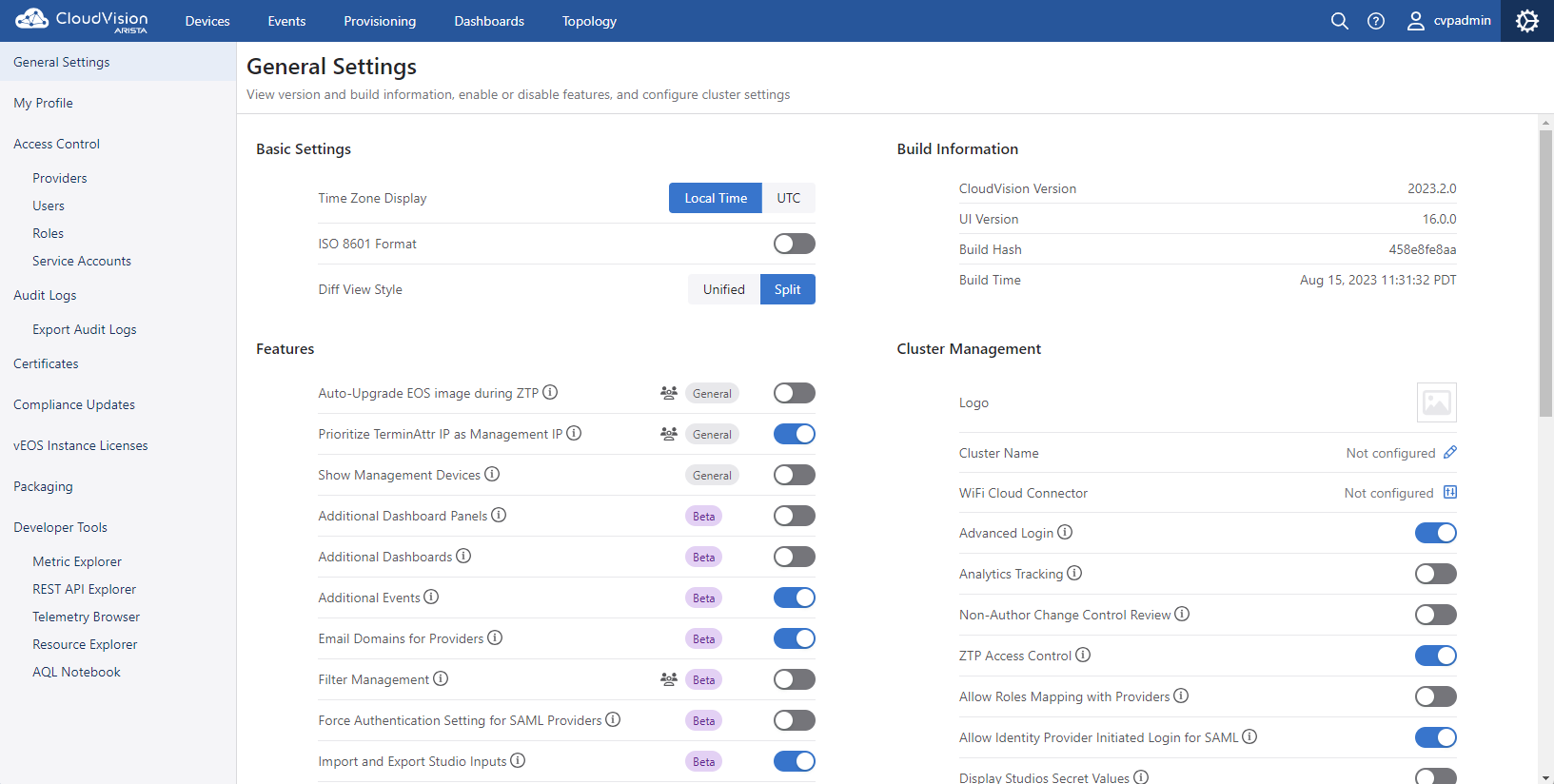

    Figure 1. Default Settings for Home Page and Dashboard Logo
  5. To customize the dashboard logo, perform the following steps:
    • Click the image box next to the logo field.
    • In the Upload logo dialog, Click Select file.
    • Navigate to the desired image, and click Open. (The imported image is displayed next the Select file box.)
    • Click Upload.
